BELDEN 5220UL 2C x 16(Solid)AWG , NEC 760 FPLR, Fire Alarm Cable
 ۾ : T.744-0909
ȸ : 135
   http://www.beldenkorea.com/pdf/usa/20.55%20Belden%20USA.pdf [35]
   https://catalog.belden.com/techdata/EN/5220UL_techdata.pdf [38]

BELDEN ̺, AlphaWire ѱ ̺ ܢ T.02-744-0909 ()


û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ


 M.010-9228-7710

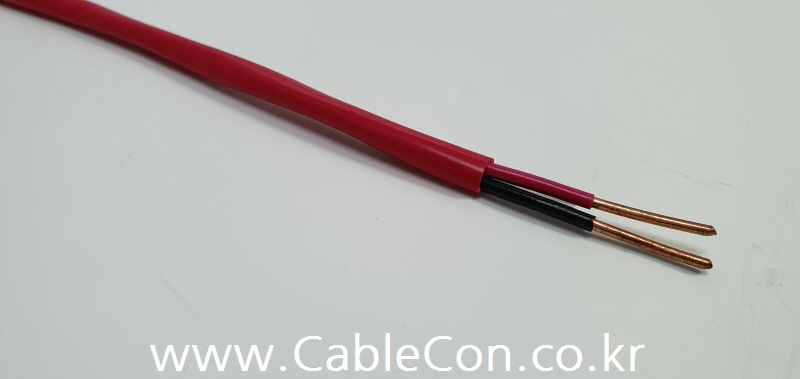

BELDEN 5220UL- NEC 760 FPLR, Fire Alarm Cable

Plenum Number: BELDEN 6220UL


Color Code: 001(Brown), 002 (Red), 003 (Orange), 004 (Yellow), 009 (White), 010 (Black), D15 (Blue)

Length: 500ft, 1000ft, 150M, 300M


Application

Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits,

Initiating Circuits, Notification Circuits


2C x 16(Solid)AWG Bare copper conductors

Polyolefin insulation

PVC jacket with ripcord


Standards

NEC Articles: 760

NEC/(UL) Specification: FPLR

CPR Euroclass: Eca


Flammability

UL Flammability: UL1666 Riser

CSA Flammability: FT4

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS


www.cablecon.co.kr  5220UL www.cable.kr  Belden īٷα
