BELDEN 5339B5 1C x 18(Solid)AWG , RG-6/U, CATV, CM
 ۾ : T.744-0909
ȸ : 91
   http://www.beldenkorea.com/pdf/usa/20.48%20Belden%20USA.pdf [24]
   https://catalog.belden.com/techdata/EN/5339B5_techdata.pdf [23]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()

û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ


010-9228-7710  010-6612-ĥĥϰ  BELDEN 010-3141-ĥĥϰ

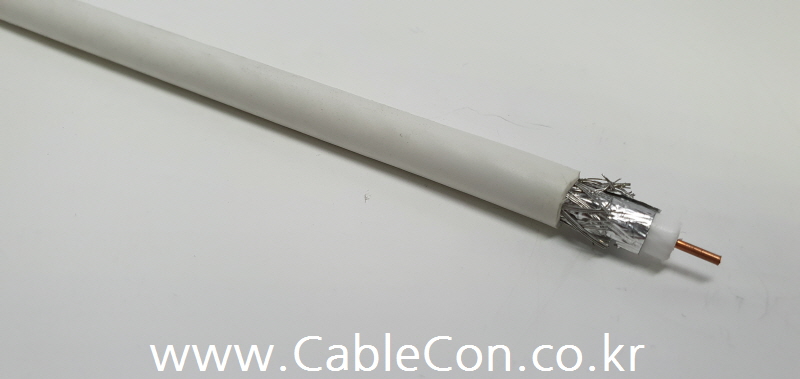

BELDEN  5339B5 - Surveillance, CATV & MATV Cable

Color Code: 009 (White), 010 (Black)

Length: 500ft, 1000ft, 150M, 300M


Construction

Conductor: 1C x 18(Solid)AWG, 040" BC(Bare copper)

Insulation: PE - Polyethylene (Foam)

Tape Shield: Duobond II (Coverage: 100%)

Braid Shield: Aluminum braid shield (Coverage: 93%)

Jacket: PVC


Standards

NEC/(UL) Specification: CATV, CM

CEC/C(UL) Specification: CM

RG Type: 6/U Type

Series Type: Series 6


Suitability

Suitability - Aerial: Yes - When supported by messenger wire

Suitability - Burial: No

Suitability - Hazardous Locations: No

Suitability - Indoor: Yes

Suitability - Outdoor: Yes


Flammability

UL Flammability: UL1685 UL Loading

UL voltage rating: 350 V RMS
