BELDEN 5339Q5 1C x 18(Solid)AWG RG-6/U, Quad Shild, NEC CATV, CM
 ۾ : T.744-0909
ȸ : 445
   http://www.beldenkorea.com/pdf/usa/20.48%20Belden%20USA.pdf [135]
   https://catalog.belden.com/techdata/EN/5339Q5_techdata.pdf [134]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ


010-9228-7710  010-6612-ĥĥϰ  BELDEN 010-3141-ĥĥϰ

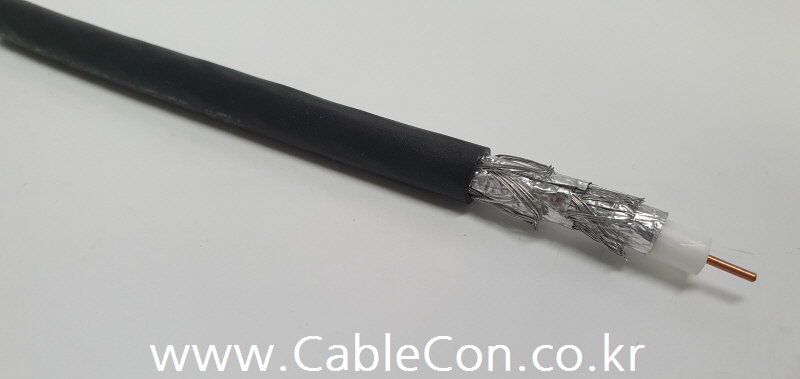

BELDEN  5339Q5 - Surveillance, CATV & MATV Cable,
Plenum Number: 6339Q8
Color Code: 009 (White), 010 (Black)
Length: 500ft, 1000ft, 150M, 300M


Application
Surveillance, CATV & MATV Cable


Physical Characteristics (Overall)


Conductor: Coax: 1C x 18(Solid)AWG, BC - Bare Copper


Insulation: PE - Polyethylene (Foam)


Shield:
Tape 1: Duofoil (Alum / Poly) / Coverage: 100 %
Braid 2: Aluminum / Coverage:  60 %
Tape 3: Duofoil (Alum / Poly) / Coverage: 100 %
Braid 4: Aluminum / Coverage:  40 %


Jacket: PVC - Polyvinyl Chloride


Standards
NEC/(UL) Specification: CATV, CM

CEC/C(UL) Specification: CM

CPR Euroclass: Eca

RG Type: 6/U Type

Series Type: Series 6


Flammability
C(UL) Flammability: FT1

UL Flammability: UL1685 UL Loading

ISO/IEC Flammability: IEC 60332-1-2
