BELDEN 5339W5 1C x 18(Solid)AWG , Water-blocked Coax(), RG-6, CATV, CL2, CM, CPR Eca
 ۾ : T.744-0909
ȸ : 65
   http://www.beldenkorea.com/pdf/usa/20.37%20Belden%20USA.pdf [8]
   https://catalog.belden.com/techdata/EN/5339W5_techdata.pdf [10]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()

û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ


010-9228-7710  010-6612-ĥĥϰ  BELDEN 010-3141-ĥĥϰ

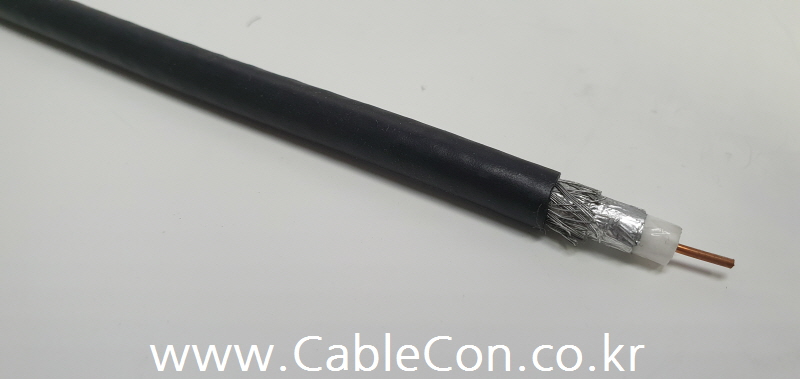

BELDEN  5339W5 – RG-6, Water-blocked Coax(), Surveillance, CATV & MATV Cable

Color Code: 010 (Black)

Length: 1000ft, 300M


Construction

Conductor: 1C x 18(Solid)AWG, 040" BC(Bare copper)

Insulation: PE - Polyethylene (Foam)

Tape 1) Shield: Duofoil(Alum / Poly / Alum) (Coverage: 100%)

Braid 2) Shield: Aluminum braid shield (Coverage: 60%)

Outer Shield Table Note: CoreGuard gel filled

Jacket: PVC


Standards

NEC/(UL) Specification: CL2, CM

CEC/C(UL) Specification: CM

CPR Euroclass: Eca

RG Type: 6/U Type


Suitability

Suitability - Aerial: Yes - When supported by messenger wire

Suitability - Burial: No

Suitability - Hazardous Locations: No

Suitability - Indoor: Yes

Suitability - Outdoor: Yes


Flammability

C(UL) Flammability: FT1

UL Flammability: UL1685 UL Loading

ISO/IEC Flammability: IEC 60332-1-2
