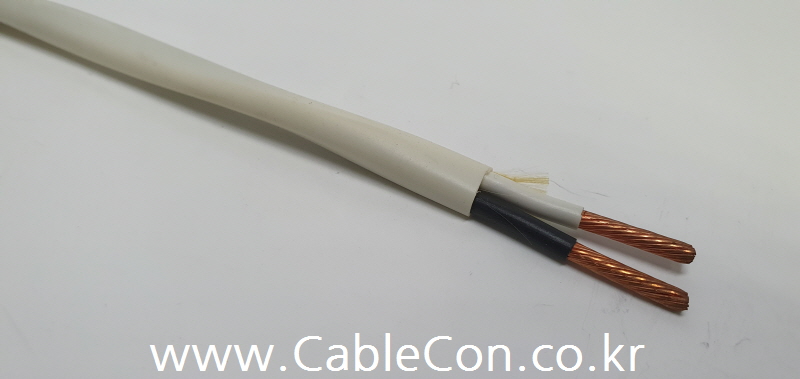

BELDEN 6000UE 2C x 12(19x25)AWG , Plenum CL2P, Security & Sound Cable
 ۾ : T.744-0909
ȸ : 541
   http://www.beldenkorea.com/pdf/usa/20.22%20Belden%20USA.pdf [143]
   https://catalog.belden.com/techdata/EN/6000UE_techdata.pdf [142]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()

û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ


010-9228-7710  010-6612-ĥĥϰ  BELDEN 010-3141-ĥĥϰ



BELDEN  6000UE - Intercom/PA Systems, Sound/Audio Systems

Non-Plenum Number: 5000UE

Color Code: 010 (Black), 012 (Pink), 877 (Natural)

Length: 500ft, 1000ft, 150M, 300M


Application

Intercom/PA Systems, Sound/Audio Systems


Physical Characteristics (Overall)

Conductor: 2C x 12(19x25)AWG, Bare Copper

Insulation: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest

Color Chart: 1) Black / 2) White

Shield: No Shield

Jacket: PVC-LS - Polyvinyl Chloride (Low Smoke) / Flamarrest


Standards

NEC Articles: 725

NEC/(UL) Specification: CL2P

CPR Euroclass: Eca


Flammability

UL Flammability: NFPA 262

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 150 V RMS
