BELDEN 5302FE 4C x 18(7x26)AWG , NEC 800 CMR, UL1666 Riser, CSA FT4
 ۾ : T.744-0909
ȸ : 575
   http://www.beldenkorea.com/pdf/usa/20.13%20Belden%20USA.pdf [155]
   https://catalog.belden.com/techdata/EN/5302FE_techdata.pdf [158]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, 010-3732-ĥĥϰ 010-6377-ĥĥϰ ,õ 010-9223-ĥĥϰ

010-9228-7710  010-6612-ĥĥϰ  BELDEN 010-3141-ĥĥϰ

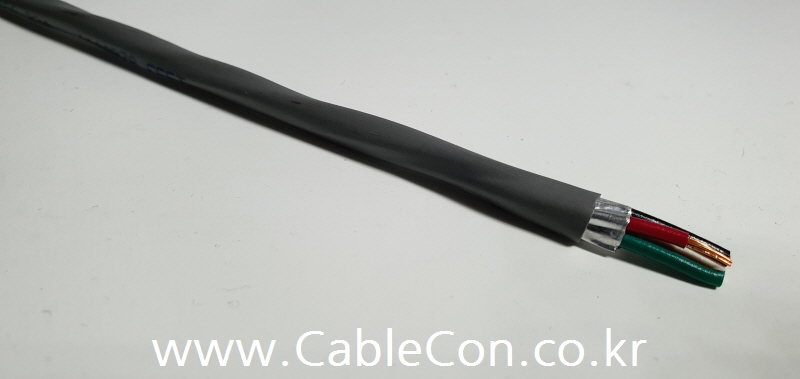

BELDEN  5302FE - Security & Sound Cable, Riser-CMR
Plenum Number: 6302FE
Color Code: 00 (Chrome), 008 (Gray)
Length: 500ft, 1000ft, 150M, 300M

Application
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)
Conductor:
4C x 18(7x26)AWG, BC - Bare Copper
Insulation:
PP - Polypropylene
Color Chart
1)Black, 2)Red, 3)White, 4)Green
Shield:
Beldfoil(Alum / Poly )/ Coverage:  100 %
Drain Wire
24(7X32)awg, tc-Tinned Copper
Jacket:
PVC-Polyvinyl Chloride

Standards
NEC Articles: 800

NEC/(UL) Specification: CMR

CEC/C(UL) Specification: CMG

CPR Euroclass: Eca

Flammability, LS0H, Toxicity Testing
UL Flammability: UL1666 Riser

CSA Flammability: FT4

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS
