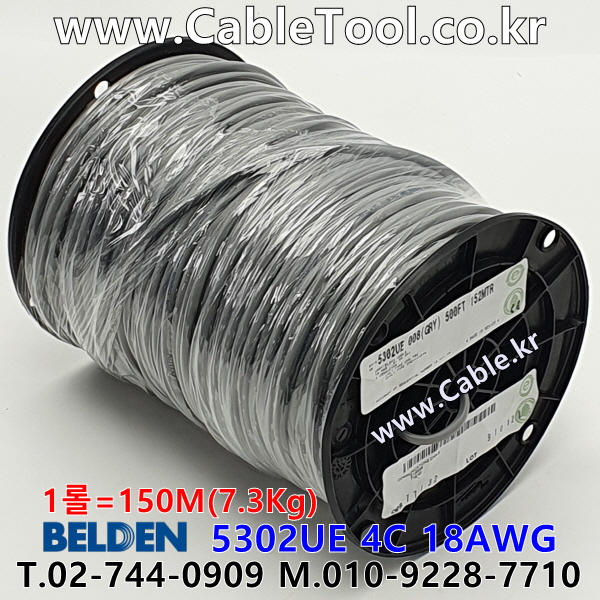

BELDEN  5302UE - Security & Sound Cable, Riser-CMR
Plenum Number: 6302UE
Color Code: 00 (Chrome), 008 (Gray)
Length: 500ft, 1000ft, 150M, 300M

Application
Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)
Conductor:
4C x 18(7x26)AWG, BC - Bare Copper
Insulation:
PP - Polypropylene
Color Chart
1)Black, 2)Red, 3)White, 4)Green
Jacket:
PVC-Polyvinyl Chloride

Standards
NEC Articles: 800

NEC/(UL) Specification: CMR

CEC/C(UL) Specification: CMG

CPR Euroclass: Eca

Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT4

UL Flammability: UL1666 Riser

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS
