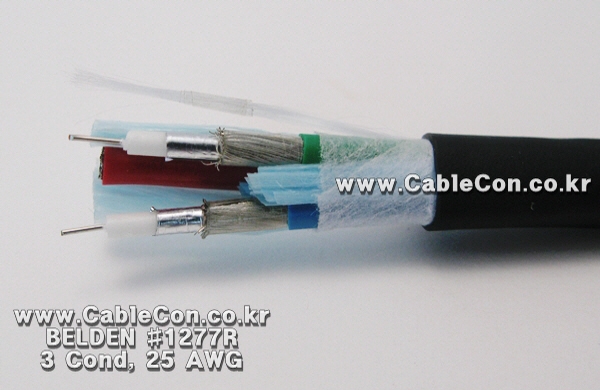

1277R BELDEN
Mini Hi-Res Component Video Cable

 µ:  -40 To + 75
  ü  :  3
:  25 AWG / ܼ
ü :  0.45mm
ü :  ּ ó
:  PVC - Polyvinyl Chloride
:  ˷̴ ȣ - ׸ ü ణ ó, ּ
:  Gas-injected FHDPE - Foam High Density Polyethylene
:  PVC - Polyvinyl Chloride
:  ( 100%) + ¹ ֱ⿡ ּ ݵ ( 95%)
ü :  8.12mm
Ư Ǵ:  75
:  UL: 300 V RMS
                Non-UL: 300 V RMS
ǰ :  1000Ft. - 21.8kg
:  Conductor
4C-1278R, 5C-1279R, 6C-1280R

===============================

Coax: 3
AWG: 25
Stranding: Solid
Conductor Material: TC - Tinned Copper
Dia.: .018 in.
Inner Jacket Material: PVC - Polyvinyl Chloride
Inner Shield Material: Aluminum Foil-Polyester Tape Lightly bonded to dielectric, TC - Tinned Copper
Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
Outer Jacket Material: PVC - Polyvinyl Chloride
Impedance: 75 Ohm
Voltage: 300 V RMS Voltage: 300 V RMS
