BELDEN 543945 1C x 20(Solid)AWG º§µ§ RG-59/U, NEC CMG, FT4, CCTV Camera Cable
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 5,653
   http://www.beldenkorea.com/pdf/usa/21.25%20Belden%20USA.pdf [912]
   https://catalog.belden.com/techdata/EN/543945_techdata.pdf [956]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.cable.kr
BELDEN
¼îÇθô ¹Ù·Î°¡±â:  www.cabletool.kr


BELDEN º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄܢߠ& ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (ÃæûÀü¶ó°æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±âÀÎõ°­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿ÜÁ¦ÁÖ ¹®ÀÇ)

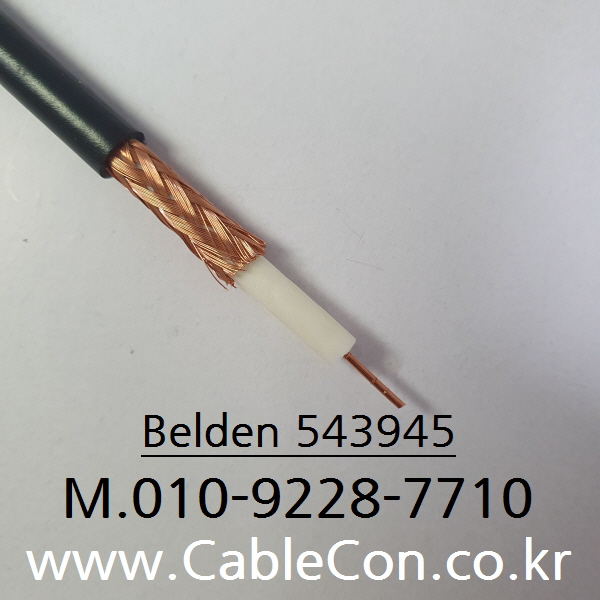

BELDEN  543945 – RG-59/U, Surveillance, CCTV Camera Cable
Plenum Number: 643948
Color Code: 009 (White), 010 (Black)
Length: 500ft, 1000ft, 150M, 300M


Application
Surveillance, CCTV Camera


Physical Characteristics (Overall)
Conductor: Coax: 1C x 20(Solid)AWG, BC - Bare Copper
Insulation: PE - Polyethylene (Foam)

Shield:  Braid (BC-Bare Copper) / Coverage:  90 %

Jacket: PVC - Polyvinyl Chloride


Standards
NEC Articles: 800

NEC/(UL) Specification: CMG

CEC/C(UL) Specification: CMG

CPR Euroclass: Eca

RG Type: 59/U Type

Series Type: Series 59


Flammability
C(UL) Flammability: FT4

UL Flammability: UL 1685 FT4

ISO/IEC Flammability: IEC 60332-1-2

IEEE Flammability: IEEE 1202 VERTICAL TRAYUL voltage rating: 300 V RMS
