Series6 7916A 75 Ohm 1C 18AWG BELDEN
 ۾ : T.744-0909
ȸ : 4,888
   http://www.beldenkorea.com/pdf/usa/6.33%20Belden%20USA.pdf [390]
   https://catalog.belden.com/techdata/EN/7916A_techdata.pdf [421]

BELDEN īٷα ٷΰ:  www.cable.kr
BELDEN
θ ٷΰ:  www.cabletool.kr


BELDEN  AlphaWire Ŀ̾ ѱ ̺ܢ & ̺()
.02-744-0909  /  M.010--7710 ( )


.02-744-1575  /  M.010-ĥ-7710 (û)
.02-744-1576  /  M.010-ĥĥ-7710 ( )

.02-744-1577  /  M.010-̻-7710 (õ)
.02-744-1578  /  M.010--7710 (ؿ )

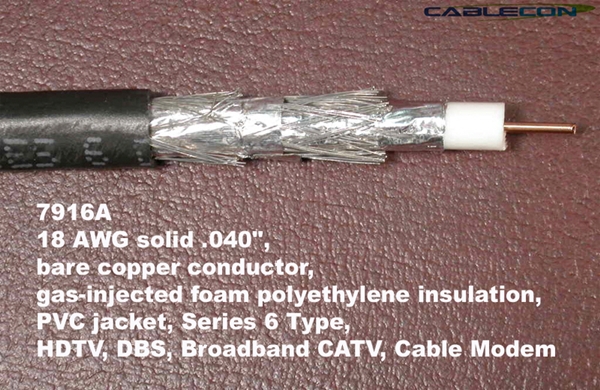

 7916A BELDEN
Series 6 Type / 75 Ohm DBS Cable

 µ:  -40 To +80
  ü  :  1
:  18 AWG / ܼ
ü ܰ:  1.01mm
ü :
:  PVC - Polyvinyl Chloride
:  Gas-injected FPE - Foam Polyethylene
:  PVC - Polyvinyl Chloride
ϸ:  Bonded Duofoil?
:  Duobond? IV + ˷̴ ( 60% and 40%)
:  ˷̴ ȣ - ׸ - ˷̴ ȣ, ˷̴
ü ܰ:  7.56mm
    (Y/ N):  No
ǰ:  7916AP
Ư Ǵ:  75
:  300 V RMS
ǰ :  1000Ft. - 15.9kg


===============================

Coax: 1
AWG: 18
Stranding: Solid
Conductor Material: BC - Bare Copper
Dia.: .040 in.
Insulation Material: Gas-injected FPE - Foam Polyethylene
Outer Jacket Material: PVC - Polyvinyl Chloride
Outer Shield Trade Name: Bonded Duofoil?
Outer Shield Material: Bonded Aluminum Foil-Polyester Tape-Aluminum Foil, AL - Aluminum
Series Type: Series 6
Plenum (Y/N): N
Plenum Number: 7916AP
Impedance: 75 Ohm
Voltage: 300 V RMS

BELDEN 7916A 1Conductor 18AWG  ú 3-1-3(R)

======================================================
