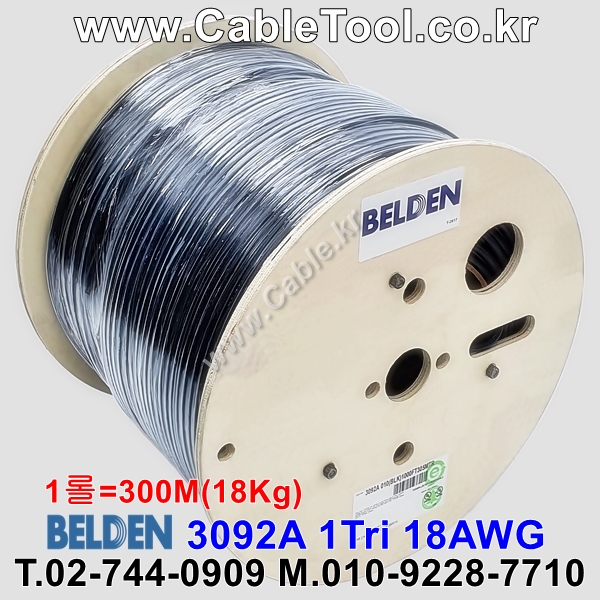

BELDEN 3092A, ControlBus™ (ControlNet), RG-6, QUAD Shield, PVC Jkt, CMR
Allen Bradley P.N: 1786 (1786-RG6)
선재: 1C x 18(Solid)AWG
콘덕터 재질: BCCS - Bare Copper Covered SteelConductor
절연체 재질: PE - Polyethylene (Foam) Insulation

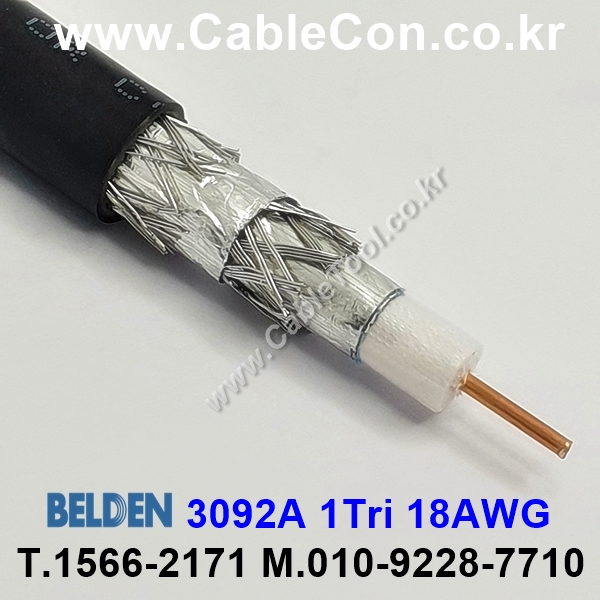

쉴드 타입:

Tape 1) Duobond? II / Tri-Laminate (Alum+Poly+Alum) (차폐율: 100%
Braid 2) Aluminum Copper (AL) (차폐율: 60%)
Tape 3) Duofoil? / Tri-Laminate (Alum+Poly+Alum) (차폐율: 100%
Braid 4) Aluminum Copper (AL) (차폐율: 40%)
외피 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 3092A, Allen Bradley 1786 (1786-RG6), ControlNet™, Modbus II, Industrial Coaxial Cable

표준 및 준수항목:
RG Type: 6
Nom. Impedence: 75 Ohm
UL Voltage Rating: 300 V (CMR, CMG)
Operating Temperature: -30°C to +75°C
Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: UL1666 Vertical Shaft
NEC / UL Compliance: CMR, CL2R, CMG
CEC / C(UL) Compliance: CMG
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 3093A
