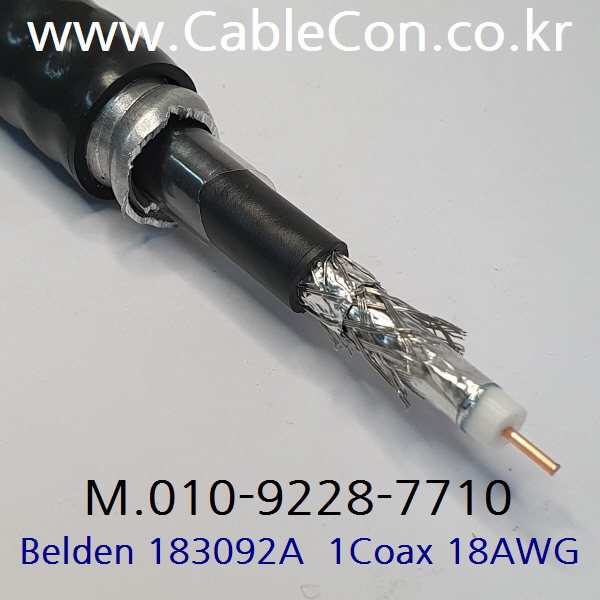

ControlNet™ Quad Shielded Coax
Coax: 1
AWG: 18
Stranding: Solid
Conductor Material: BCCS - Bare Copper Covered Steel
Dia.: .040 in.
Inner Jacket Material: PVC - Polyvinyl Chloride
Insulation Material: FPE - Foam Polyethylene
Outer Jacket Material: PVC - Polyvinyl Chloride
Outer Shield Trade Name: Bonded Duofoil?
Outer Shield Material: Bonded Aluminum Foil-Polyester Tape-Aluminum Foil, AL - Aluminum
RG Type: 6/U
Plenum (Y/N): No
Impedance: 75 Ohm
Voltage: 300 V RMS

======================================================
