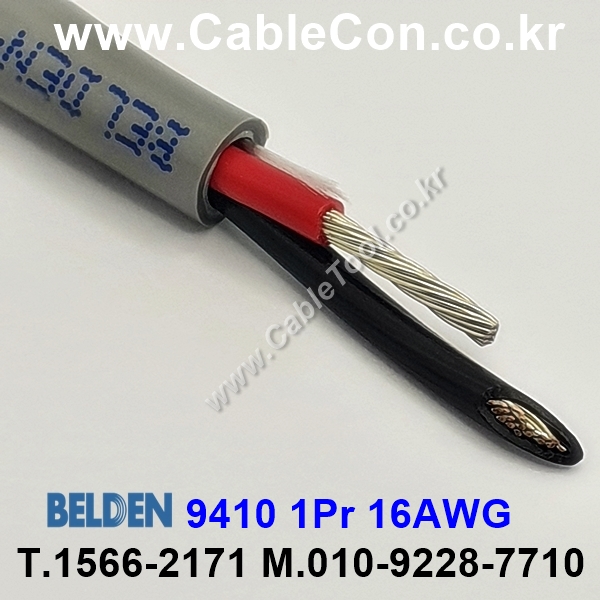

BELDEN 9410, UL13(PLTC), UL2250(ITC), PVC Outer Jacket, PLTC-ER, UL 2464
선재: 1Px16(19x29)AWG
콘덕터 재질: TC - Tinned Copper
절연체 재질: PVC - Polyvinyl Chloride
색상 코드: Black, Red

쉴드 타입: Unshielded
드레인와이어: 해당없음

외피 재질: PVC - Polyvinyl Chloride

사용환경:
Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

표준 및 준수항목:
Voltage Rating: 300 V (PLTC, CMG), 150 V (ITC)
Operating Temp Range:: -30°C to +105°C
Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance

Flammability / Fire Resistance: UL1685 Vertical Tray Flame Test, FT4, T-29-520, 1202

NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC-ER, PLTC-ER

AWM Compliance: 2464

CEC / C(UL) Compliance: CMG

European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

APAC Compliance: China RoHS II (GB/T 26572-2011)
