BELDEN 3076F 2Pr x 22(7x30)AWG
 ۾ : T.744-0909
ȸ : 118
   http://www.beldenkorea.com/pdf/usa/18.21%20Belden%20USA.pdf [20]
   https://catalog.belden.com/techdata/EN/3076F_techdata.pdf [18]

BELDEN ̺, AlphaWire Ŀ̾ ѱ ̺ ܢ

T.02-744-0909   M.010-9228-7710  ( )

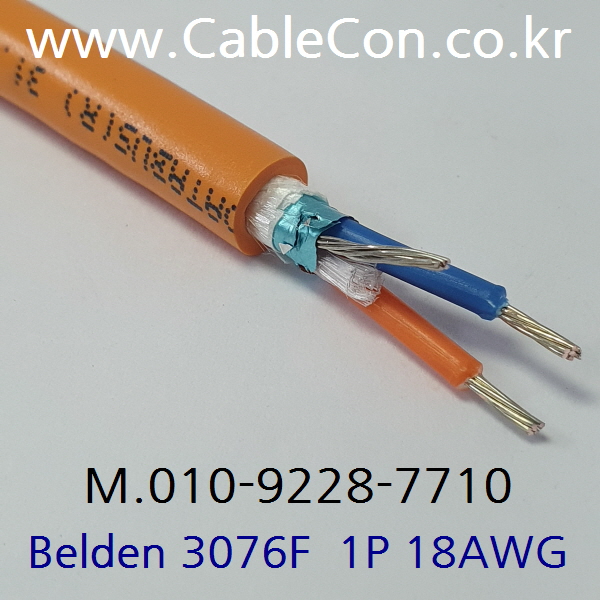

BELDEN  3076F - Foundation Fieldbus Type A, 1 Pr #18 Str TC, PO Ins, OS, PVC Jkt,

IEC 61158-2 (ISA/SP-50) ʵ ؼ,

Color Code: 003(Orange), 006(Blue, Light)

Length(ft): BELDEN3076F 003500(152m), 3076F 0031000(304m),

               BELDEN3076F 0032500(762m), 3076F 0035000(1524m)



1 Pair 18AWG (7x26) Tinned Copper

PO Insulation

Overall Beldfoil Shield

Orange PVC Outer Jacket



Standards

NEC Articles: 725, 727, 800

NEC/(UL) Specification: CMR, ITC-ER, PLTC-ER

CEC/C(UL) Specification: CMG

CPR Euroclass: Eca

IEEE Specification: 1202, IEEE 383 Vertical Tray Flame Test (70,000 BTU)


Suitability

Suitability - Burial: Yes - UL

Suitability - Oil Resistance: Yes

Suitability - Outdoor: Yes

Suitability - Sunlight Resistance: Yes


Flammability

C(UL) Flammability: FT4

UL Flammability: UL1666 Riser

ISO/IEC Flammability: IEC 60332-1-2

IEEE Flammability: 1202
