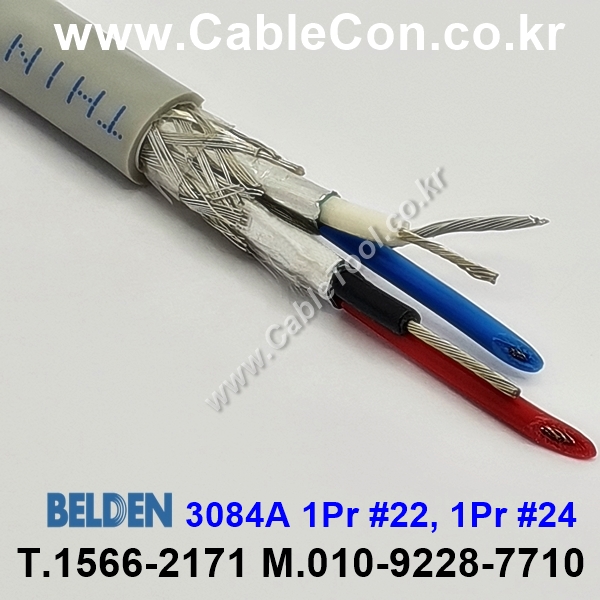

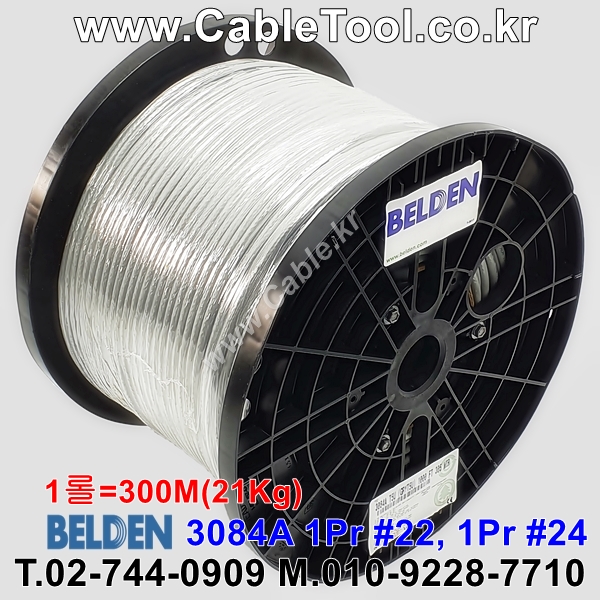

BELDEN 3084A – DeviceBus for ODVA DeviceNet ThinType

Application:
Harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.

Physical Characteristics (Overall)
Conductor:

Power Pair(s): 1Pr x 22(19x34)AWG, TC-Tinned Copper
Data  Pair(s): 1Pr x 24(19x36)AWG, TC-Tinned Copper

Insulation:
Power Pair(s): PVC - Polyvinyl Chloride
Data  Pair(s):
PE - Polyethylene (Foam)

Color Chart:

Power Pair(s): Red & Black
Data  Pair(s):
Blue & White

Inner Shield Material:
Power Pair(s): Beldfoil(Alum / Poly ) / Coverage: 100 %
Data  Pair(s): Beldfoil(Alum / Poly ) / Coverage: 100 %

Outerer Shield Material:
Braid ) TC-Tinnec Copper / Coverage: 65 %

Drain Wire:
22(19x34)AWG, TC-Tinned Copper

Jacket: PVC-Polyvinyl Chloride

Environmental Suitability: Indoor, Sunlight Resistance, Oil Resistance

Standards and Compliance
Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2

NEC / UL Compliance: Article 725, Article 800, CL2, CMG

AWM Compliance: 20201, AWM I/II A

CEC / C(UL) Compliance: CMG

CPR Euroclass: Eca

European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

APAC Compliance: China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s): ODVA Class 2 Thin

Notes: Flex Life: +/- 90 Degree Flex Test, 2" Diameter, 2 lbs. tension: 2000 Cycles minimum. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark.
