BELDEN Y64534 3Cx 12(7x20)AWG 600V UL Type TC (UL1277) Cable)
 ۾ : T.744-0909
ȸ : 549
   http://www.beldenkorea.com/pdf/usa/18.64-18.69.PDF [130]
   https://catalog.belden.com/techdata/EN/28110A_techdata.pdf [132]

BELDEN ̺ ѱ AlphaWire Ŀ̾ ̺ܢ .02-744-0909()
û,, (010-3732-ĥĥϰ) (010-6377-ĥĥϰ) ,õ (010-9223-ĥĥϰ)

(010-9228-7710)  (010-6612-ĥĥϰ) BELDEN (010-3141-ĥĥϰ)

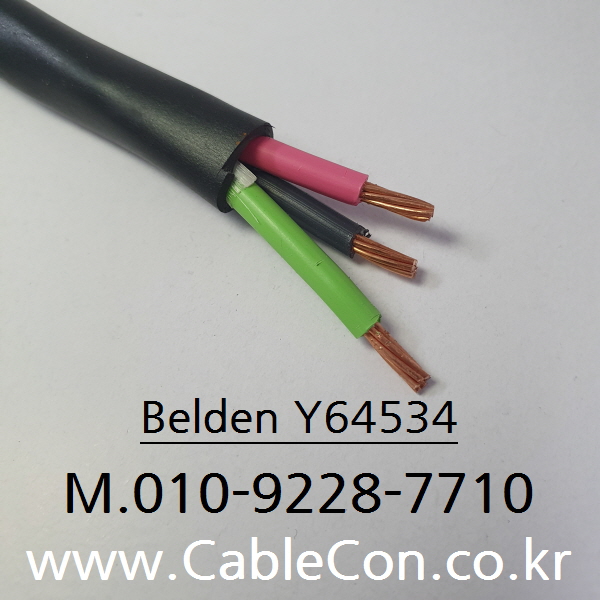

BELDEN  Y64534 – 600V UL Type TC-ER (UL1277) Cable
_Y64534 ( BELDEN  28110Z with Core Color option: Black, Red, Green )
_BELDEN 28110Z (BELDEN 28110A with Option Insulation material: XLPE)
_ BELDEN 28110A (BELDEN 27110A with Option TC-ER Rating)

Color Code: 010 (Black)
Length: 500M

Application
600V UL Type TC (UL1277) Cable

Physical Characteristics (Overall)
Conductor
Conductor(s): 3C x 12(7x20)AWG, BC-Bare Copper
Insulation
XLPE
Color Chart
Black, Red, Green
Outer Jacket Material
PVC - Polyvinyl Chloride

Standards
NEC/(UL) Specification: NPLF, TC-ER, THWN-2 Singles
Other Specification: ICEA S-73-532, S-95-658, S-61-402

Flammability, LS0H, Toxicity Testing
UL Flammability: UL1685 Vertical Tray Flame Test
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS (Type TC)
