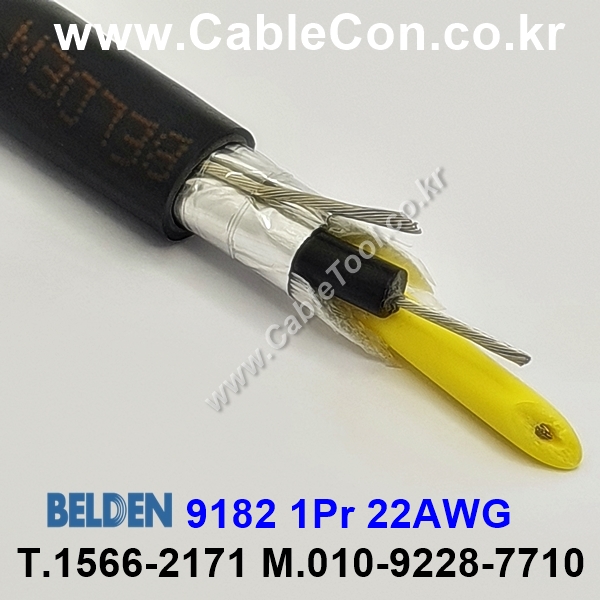

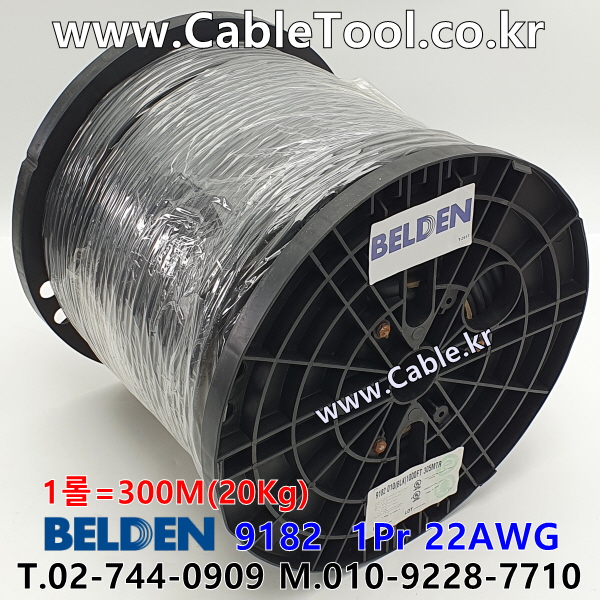

BELDEN 9182, 150Ω Twinax, Duofoil? Shield, PVC Jacket, CMX, UL AWM 2668
선재: 1P x 22(19x34)AWG
콘덕터 재질: TC - Tinned Copper Conductor
절연체 재질: FHDPE - Foam High Density Polyethylene Insulation
색상 코드: Black & Yellow

쉴드 타입:
Tape) 전체 Duofoil?/ Tri-Laminate (Alum+Poly+Alum) 차폐(차폐율: 100%)
드레인와이어: 22 AWG (19x34) , TC
외피 재질: PVC - Polyvinyl Chloride

사용환경:
BELDEN 9182,  가혹한 환경의 공장 또는 프로세스 자동화, 영상, 오디오, 데이터 전송용

표준 및 준수항목:
UL Voltage Rating: 300 V (CMX)
Operating  Temperature: -20°C to +60°C
Environmental Suitability: Indoor/Outdoor, Indoor, Sunlight Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: VW-1, FT1
NEC / UL Compliance: Article 725, Article 800, CL2X, CMX
AWM Compliance: 2668
CEC / C(UL) Compliance: CMX
European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
