BELDEN Y62472 18Pr x 20(7x28)AWG º§µ§ NEC Type PLTC (UL13) / BELDEN 1079A with 18Pair ¿É¼Ç »ç¾ç
 ±Û¾´ÀÌ : »ç¾ç¼­º¸±â
Á¶È¸ : 2,979
   Y62472 TD.PDF (77.3K) [13] DATE : 2021-07-20 16:28:39
   http://www.beldenkorea.com/pdf/usa/18.42-18.52.PDF [871]

BELDEN Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.Cable.kr
BELDEN Y62472 ¼îÇθô ¹Ù·Î°¡±â: www.cabletool.kr/shop/Belden-Y62472_belden


BELDEN
º§µ§ AlphaWire ¾ËÆÄ¿ÍÀ̾î Çѱ¹ÃÑÆÇ ÄÉÀ̺íÄÜ¢ß & ÄÉÀ̺íÅø(ÁÖ)
¢Ï.02-744-0909  /  M.010-À°À°ÀÏÀÌ-7710 (º§µ§ ±â¼ú ¹®ÀÇ)


¢Ï.02-744-1575  /  M.010-»ïÄ¥»ïÀÌ-7710 (Ãæû, Àü¶ó, °æ»ó)
¢Ï.02-744-1576  /  M.010-À°»ïĥĥ-7710 (¼­¿ï °ßÀû Àç°í)

¢Ï.02-744-1577  /  M.010-±¸ÀÌÀÌ»ï-7710 (°æ±â, ÀÎõ, °­¿ø)
¢Ï.02-744-1578  /  M.010-±¸ÀÌÀÌÆÈ-7710 (ÇØ¿Ü, Á¦ÁÖ ¹®ÀÇ)

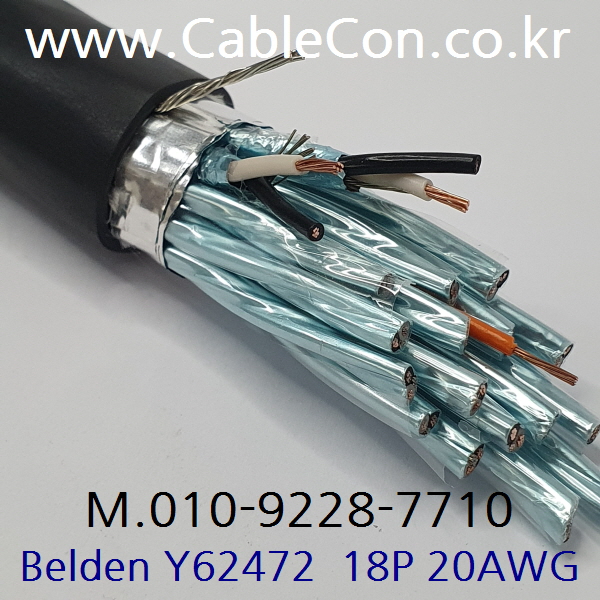

BELDEN  Y62472 – UL Instrumentation 300V PLTC. ITC Cable
_Y62472 ( BELDEN 1079A with 18Pair
¿É¼Ç »ç¾ç )
Color Code: 010 (Black)
Length: 1000ft, 300M

Application
300V PLTC, ITC UL Instrumentation Cable

Physical Characteristics (Overall)
Conductor
Pair(s): 18Pr x 20(7x28)AWG, BC-Bare Copper
Conductor(s): 1C x 22(7x30)AWG, BC-Bare Copper
Insulation
Pair(s): PVC - Polyvinyl Chloride
Conductor(s): PVC - Polyvinyl Chloride
Color Chart
Pair(s): Black / White, continuously numbered on white core (1, 2, 3..) for multi-element
Conductor(s): Orange
Inner Shield Material
Pair(s): Beldfoil?(Alum/Poly) / Coverage: 100%
_Drain Wire: 22(7x30)AWG, TC-Tinned Copper
Conductor(s): No Shield
Outer Shield Material
Beldfoil?(Alum/Poly) / Coverage: 100%
_Drain Wire: 20(7x28)AWG, TC-Tinned Copper
Outer Jacket Material
PVC - Polyvinyl Chloride

Standards
NEC Articles: Article 800
NEC/(UL) Specification: CMG, ITC, PLTC
CEC/C(UL) Specification: CMG
UL AWM Style: 2464

Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT4
UL Flammability: UL1685 UL Loading
ICEA Flammability: T-29-520
IEEE Flammability: 1202
UL voltage rating: 300 V RMS
