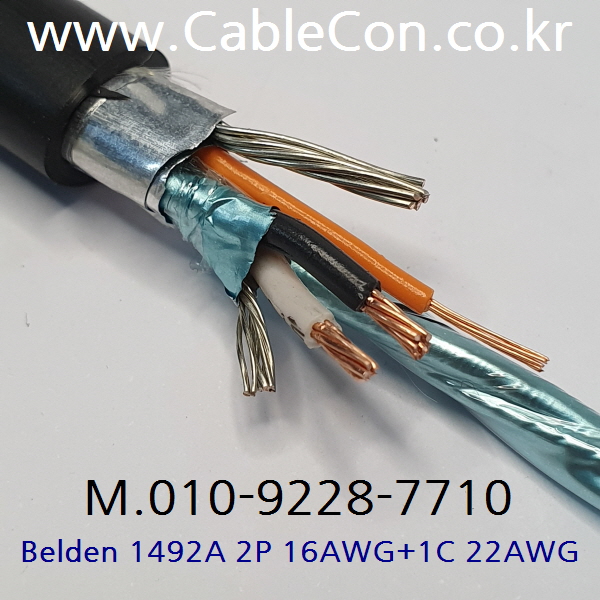

BELDEN 1492A, UL13 (PLTC), UL2250 (ITC), Black PVC Jkt, CMG, UL 2464
선재: Pair(s): 16Px20(7x28)AWG + Comm Wire: 1Cx22(7x30)AWG
콘덕터 재질: BC - Bare Copper (Pair & Comm Wire)
절연체 재질: PVC - Polyvinyl Chloride (Pair & Comm Wire)
색상 코드: Pair(s): Black, White and Numbered / Comm Wire: Orange

쉴드 타입: 개별+전체 벨드호일 차폐(Individual & Overall Beldfoil? Shield)
개별 Tape 1) Bi-Laminate (Alum+Poly) / 차폐율: 100%
개별 드레인와이어: 18 AWG (7x30) TC
전체 Tape 2) Bi-Laminate (Alum+Poly) / 차폐율: 100%
전체 드레인와이어: 16 AWG (7x24) TC

외피 재질: PVC - Polyvinyl Chloride

사용환경:
Belden 1492A, 300V PLTC, ITC, Industrial Control, Raceways Cable trays and ducts,
Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),
encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC),
Solenoids, Valves, Actuators, Positioners

표준 및 준수항목:
UL Voltage Rating: 300 V (CMG, PLTC, UL AWM 2464), 150 V (ITC)
Operating Temp Range:: -30°C to +105°C
Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial

Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, PLTC, ITC

AWM Compliance: 2464

CEC / C(UL) Compliance: CMG
