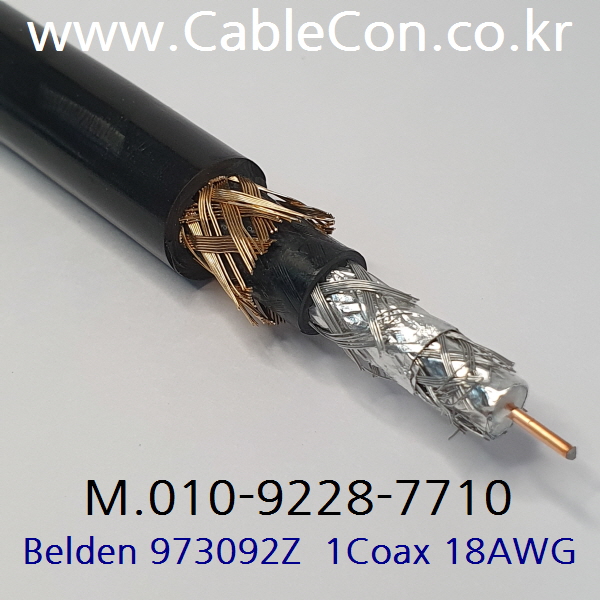

BELDEN 973092Z, ControlNet™, RG-6, Bronze Braid Armor, Haloarrest XLink 2 jacket,
Allen-Bradley P/N 1786,
선재: 1C x 18(Solid)AWG
콘덕터 재질: BCCS - Bare Copper Covered Steel
절연체 재질: PO- Polyolefin

쉴드 타입: 4중차폐(Quad Shield)
Tape 1) Tri-Laminate (Alum+Poly+Alum) (Duobond? II) / 차폐율: 100%
Braid 2) Aluminum (AL) / 차폐율: 60%
Tape 3) Tri-Laminate (Alum+Poly+Alum) (Duofoil? ) / 차폐율: 100%
Braid 4) Bare Copper (BC) / 차폐율: 40%

내피(Inner Jacket) 재질: LSZH- Low Smoke Zero Halogen
Armor Type: Bronze Braid Armor
외피(Outer Jacket) 재질: LSZH- Low Smoke Zero Halogen)

사용환경:
선박용(DNV, ABS), Allen-Bradley P/N 1786, ControlNet™, RG-6, Bronze Braid Armor, LSZH Jacket

표준 및 준수항목:
RG Type: 6/U
Nom. Impedence: 75 Ohm
Voltage Rating: 300 V (CMR, CMG)
Operating Temperature: -40°C to +75°C
Environmental Suitability: Outdoor, Sunlight Resistance, Oil Resistance

NEC/(UL) Specification: CL2, CMG-LS

CEC/C(UL) Specification: CMG
IEEE Specification: 45
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II),
EU Directive 2000/53/EC (ELV), EU Directive 2002/95/EC (RoHS), EU Directive 2002/96/EC (WEEE),
EU Directive 2003/11/EC (BFR), EU RoHS Compliance Date (mm/dd/yyyy): 09/16/2014

CA Prop 65 (CJ for Wire & Cable): Yes
