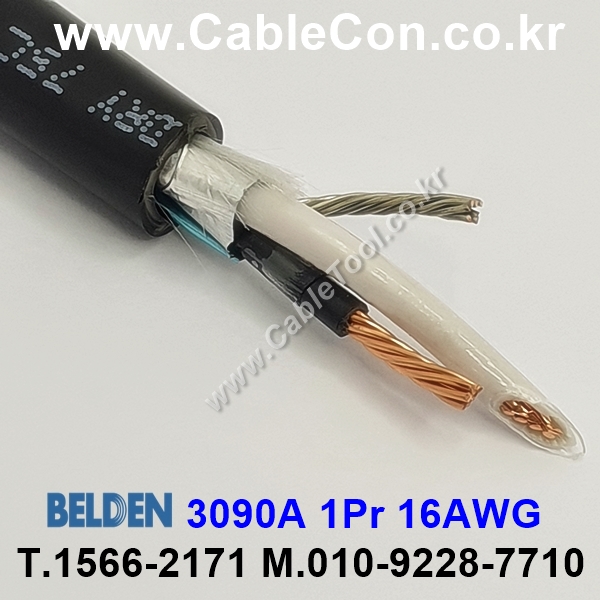

BELDEN 3090A 1P x 16(7x24)AWG º§µ§, 600V TC, 150V NPLF, Black PVC Outer Jacket
 ±Û¾´ÀÌ : T.744-0909
Á¶È¸ : 124
   http://www.beldenkorea.com/pdf/usa/18.57-18.62.PDF [26]
   https://catalog.belden.com/techdata/EN/3090A_techdata.pdf [29]

BELDEN º§µ§ÄÉÀ̺í Çѱ¹ÃÑÆÇ AlphaWire ¾ËÆÄ¿ÍÀ̾î ÄÉÀ̺íÄÜ¢ß ¢Ï.02-744-0909(°ø±¸°ø±¸)
ÃæÃ»,Àü¶ó,°æ»ó ´ã´ç (010-3732-ĥĥÀϰø) ¼­¿ï ´ã´ç (010-6377-ĥĥÀϰø) °æ±â,ÀÎõ ´ã´ç (010-9223-ĥĥÀϰø)

º§µ§ Àç°í ¹× °ßÀû ¹®ÀÇ ¹®ÀÚÀü¿ë (010-9228-7710)  º§µ§±â¼ú¹®ÀÇ (010-6612-ĥĥÀϰø) BELDEN ÆÀÀå (010-3141-ĥĥÀϰø)

Belden
¼îÇθô ¹Ù·Î°¡±â:  www.Cabletool.kr
Ä«´Ù·Î±× ¹Ù·Î°¡±â:  www.Cable.kr

BELDEN 3090A, 600V TC, 150V NPLF,
Black PVC Outer Jacket
¼±Àç: 1P x 16(7x24)AWG
ÄÜ´öÅÍ ÀçÁú:
BC - Bare Copper
Àý¿¬Ã¼ ÀçÁú: PVC/Nylon - Polyvinyl Chloride + Nylon
»ö»ó ÄÚµå: Black, White

½¯µå ŸÀÔ: Àüü º§µåÈ£ÀÏ Â÷Æó(Overall Beldfoil¢ç Shield)
Tape 1) Bi-Laminate (Alum+Poly) /
Â÷ÆóÀ²: 100%
µå·¹ÀοÍÀ̾î: 18(7x26)AWG, TC

¿ÜÇÇ ÀçÁú: PVC - Polyvinyl Chloride

»ç¿ëȯ°æ:
BELDEN 3090A, 600V TC, 150V NPLF, Industrial Control, Raceways Cable trays and ducts,
Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v,
¡¦),
encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC),
Solenoids, Valves, Actuators, Positioners


Ç¥ÁØ ¹× ÁؼöÇ׸ñ:
UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
Operating Temp Range:: Wet: -30
¡ÆC to +90¡ÆC, Dry: -25¡ÆC to +90¡ÆC
Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial

Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202

NEC / UL Compliance: Article 336, Article 760, NPLF, TC

European Directive Compliance: EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EU (WEEE)

APAC Compliance: China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s): ICEA S-73-532, S-61-402

º§µ§ ǰ¹ø Á¤º¸:
BELDEN 3090A  01012500 (Black, 762M)
BELDEN 3090A  01015000 (Black, 1524M)
BELDEN 3090A  010110000 (Black, 3048M)
