BELDEN 3031A 4T x 18(7x26)AWG + 1C x 22(7x30)AWG , 300V UL PLTC, ITC, PVC Jacket, UL AWM 2464, CMG
 ۾ : T.744-0909
ȸ : 335
   http://www.beldenkorea.com/pdf/usa/18.42-18.52.PDF [61]
   https://catalog.belden.com/techdatam/3031A.pdf [67]

BELDEN īٷα ٷΰ:  www.Cable.kr
BELDEN 3031A θ ٷΰwww.cabletool.kr/shop/Belden-3031A_belden


BELDEN
AlphaWire Ŀ̾ ѱ ̺ܢ & ̺()
.02-744-0909  /  M.010--7710 ( )


.02-744-1575  /  M.010-ĥ-7710 (û, , )
.02-744-1576  /  M.010-ĥĥ-7710 ( )

.02-744-1577  /  M.010-̻-7710 (, õ, )
.02-744-1578  /  M.010--7710 (ؿ, )

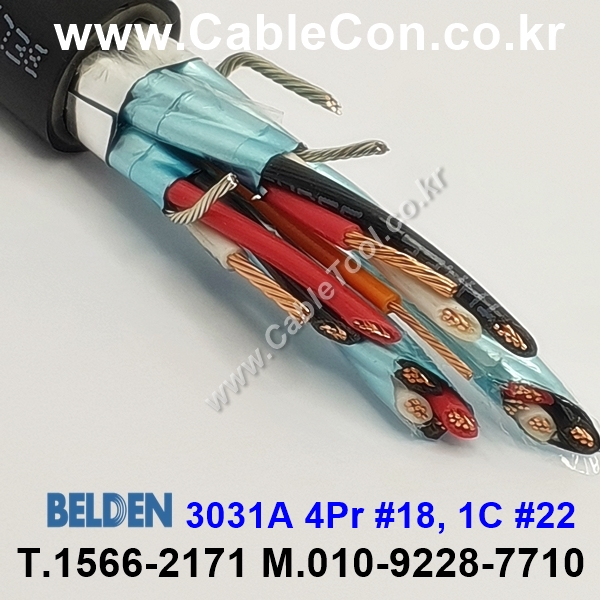

BELDEN 3031A
,
300V UL PLTC, ITC, PVC Jacket, UL AWM 2464, CMG
: Triad(s):4T x 18(7x26)AWG + Comm Wire: 1C x 22(7x30)AWG
ܴ :
Triad(s): BC - Bare Copper  / Comm Wire: BC - Bare Copper
ü : Triad(s): PVC - Polyvinyl Chloride / Comm Wire: PVC - Polyvinyl Chloride
ڵ: Triad(s): Black & White & Red and Numbered  / Comm Wire: Orange

Ÿ: +ü ȣ (Individual & Overall Beldfoil Shield)
Tape 1) Bi-Laminate (Alum+Poly) / : 100%
巹ο̾: 20 AWG (7x28) TC
ü Tape 2) Bi-Laminate (Alum+Poly) / : 100%
ü 巹ο̾: 18 AWG (7x26) TC

: PVC - Polyvinyl Chloride

ȯ:
BELDEN 3031A, UL 300V, RTD (PLTC/ITC), Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V

ǥ ؼ׸:
UL Voltage Rating: 300 V (CMG), 300V (PLTC), 150 V (ITC)
Operating  Temperature: -30C to +105C
Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, PLTC-ER, ITC-ER
AWM Compliance: 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark,
EU Directive 2000/53/EC (ELV), EU Directive 2002/95/EC (RoHS), EU Directive 2002/96/EC (WEEE), EU Directive 2003/11/EC (BFR), EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
CA Prop 65 (CJ for Wire & Cable): Yes

MII Order #39 (China RoHS): Yes
