BELDEN 133076F, 1C x 18(Solid)AWG 벨덴, Foundation Fieldbus, Steel Interlock Armor, PVC Jkt, PLTC-ER, ITC-ER, CM
 글쓴이 : T.744-0909
조회 : 135
   http://www.beldenkorea.com/pdf/usa/18.21%20Belden%20USA.pdf [32]
   https://catalog.belden.com/techdata/EN/3076F_techdata.pdf [32]

BELDEN 벨덴케이블 한국총판 AlphaWire 알파와이어 케이블콘㈜ ☎.02-744-0909(공구공구)
충청,전라,경상 담당 (010-3732-칠칠일공) 서울 담당 (010-6377-칠칠일공) 경기,인천 담당 (010-9223-칠칠일공)

벨덴 재고 및 견적 문의 문자전용 (010-9228-7710)  벨덴기술문의 (010-6612-칠칠일공) BELDEN 팀장 (010-3141-칠칠일공)

Belden 쇼핑몰 바로가기:  www.Cabletool.kr
카다로그 바로가기:  www.Cable.kr

BELDEN 133076F, Foundation Fieldbus, Steel Interlock Armor, PVC Jkt, PLTC-ER, ITC-ER, CM
선재: 1P x 18(7x26)AWG
콘덕터 재질: TC - Tinned Copper
절연체 재질: PP – Polypropylene
색상 코드: Blue & Orange

쉴드 타입: 전체 벨드호일(Beldfoil®) 차폐 (차폐율: 100%)

드레인 와이어: 20 AWG (7x28) TC

내피(Inner Jacket) 재질: PVC - Polyvinyl Chloride

Armor Type: Steel Interlock Armor
외피(Outer Jacket) 재질: PVC - Polyvinyl Chloride Jacket

사용환경:
BELDEN 133076F, Foundation Fieldbus, exposure to rodent, crush, or cut through force,
harsh environment digital and serial two-way communication, oil and gas extraction and refining sites,
petrochemical, Profibus process automation or Foundation FieldBus process automation,
extreme temperature enviornments, exposure to humidity/moisture, dust, and oil,
remote locations long distance applications, etc.

표준 및 준수항목:
UL Voltage Rating: 300 V (CM, PLTC-ER), 150 V (ITC)
Operating  Temperature: -40°C to +105°C
Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Flammability / Fire Resistance: UL1666 Riser, FT4, 1202, IEC 60332-1-2
NEC / UL Compliance: Article 725, Article 727, Article 800, CM, CMX-Outdoor, ITC-ER, PLTC-ER
CEC / C(UL) Compliance: CMG
IEEE Compliance: 1202, IEEE 383 Vertical Tray Flame Test (70,000 BTU)
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU,
EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
Notes: Fieldbus: Orange jacket. Profibus PA: Intrinsically Safe Blue jacket.

벨덴 품번 정보:
BELDEN 133076F  010 (Black, MOQ확인)

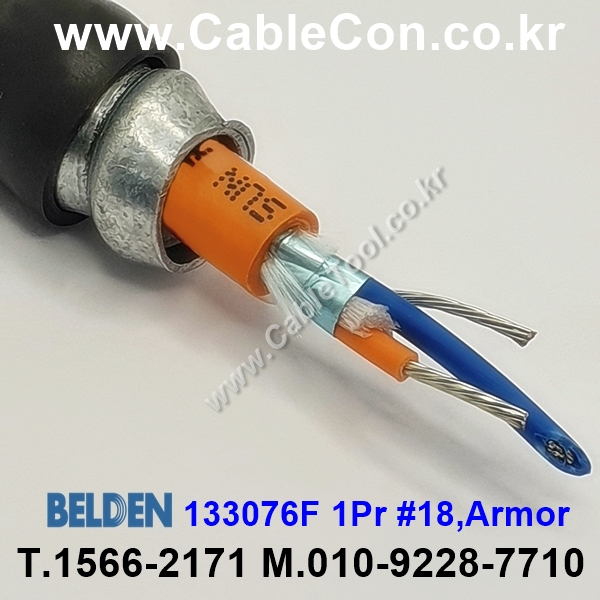

www.cablecon.co.kr  벨덴 133076F 사진 www.cable.kr  Belden 카다로그
