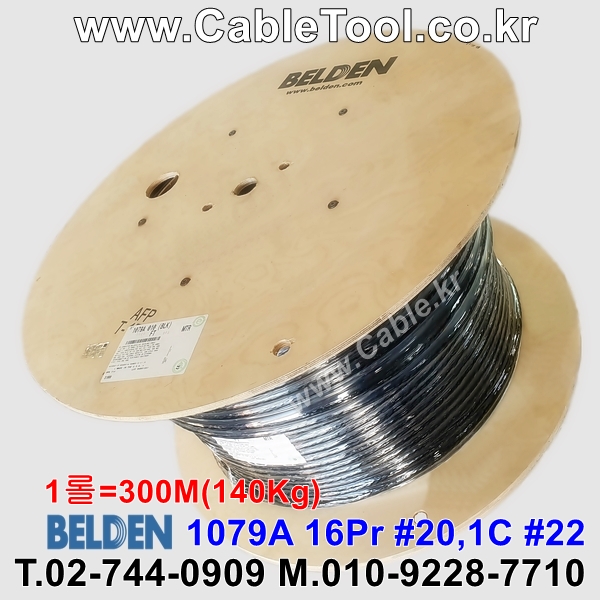

1079A 16 SH PR #20 +1 #22 PVC FS PVC BELDEN
 ۾ : T.744-0909
ȸ : 5,531
   http://www.beldenkorea.com/pdf/usa/18.42-18.52.PDF [250]
   https://catalog.belden.com/techdata/EN/1079A_techdata.pdf [287]

BELDEN īٷα ٷΰ:  www.Cable.kr
BELDEN 1079A θ ٷΰ:  www.cabletool.kr/shop/Belden-1079A_belden


BELDEN
AlphaWire Ŀ̾ ѱ ̺ܢ & ̺()
.02-744-0909  /  M.010--7710 ( )


.02-744-1575  /  M.010-ĥ-7710 (û, , )
.02-744-1576  /  M.010-ĥĥ-7710 ( )

.02-744-1577  /  M.010-̻-7710 (, õ, )

.02-744-1578  /  M.010--7710 (ؿ, )

BELDEN 1079A,
UL13 (PLTC), UL2250 (ITC),
Black PVC Outer Jkt, CMG AWM 2464
: Pair(s): 16Px20(7x28)AWG + Comm Wire: 1Cx22(7x30)AWG
ܴ : BC - Bare Copper (Pair & Comm Wire)
ü : PVC - Polyvinyl Chloride (Pair & Comm Wire)
ڵ: Pair(s): Black, White and Numbered / Comm Wire: Orange

Ÿ: +ü ȣ (Individual & Overall Beldfoil Shield)
Tape 1) Bi-Laminate (Alum+Poly) / : 100%
巹ο̾: 22 AWG (7x30) TC
ü Tape 2) Bi-Laminate (Alum+Poly) / : 100%
ü 巹ο̾: 20 AWG (7x28) TC

: PVC - Polyvinyl Chloride

ȯ:
300V PLTC, ITC, Industrial Control, Raceways Cable trays and ducts, Digital Control,
Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v,
), encoders,
control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids,
Valves, Actuators, Positioners


ǥ ؼ׸:
UL Voltage Rating: 300 V (CMG, PLTC, UL AWM 2464), 150 V (ITC)
Operating Temp Range:: -30
C to +105C
Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance

Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, T-29-520, 1202

NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, PLTC, ITC

AWM Compliance: 2464

CEC / C(UL) Compliance: CMG

European Directive Compliance:
EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II),
EU Directive 2012/19/EU (WEEE)

APAC Compliance: China RoHS II (GB/T 26572-2011)
