BELDEN _ RS-485, RS-422, RS-232, CANBUS, MODBUS Cable (ABS Type Approved)

No of Pairs: 1Pair, 2pair, 3Pair, 4Pair

Cable Size: 1.5SQ(16AWG), 0.75SQ(18AWG), 0.5SQ(20AWG), 0.34SQ(22AWG), 0.2SQ(24AWG)

24 AWG (0.2 SQ) Unarmored – XLPE / SHIELDED / LSZH

22 AWG (0.34 SQ) Unarmored – XLPE / SHIELDED / LSZH

20 AWG (0.5 SQ) Unarmored – XLPE / SHIELDED / LSZH

18 AWG (0.75 SQ) Unarmored – XLPE / SHIELDED / LSZH

16 AWG (1.5 SQ) Unarmored – XLPE / SHIELDED / LSZH

24 AWG (0.2 SQ) Galvanized Steel Wire Armor (GSWA) – XLPE / SHIELDED / LSZH

22 AWG (0.34 SQ) Galvanized Steel Wire Armor (GSWA) - XLPE / SHIELDED / LSZH

20 AWG (0.5 SQ) Galvanized Steel Wire Armor (GSWA) – XLPE / SHIELDED / LSZH

18 AWG (0.75 SQ) Galvanized Steel Wire Armor (GSWA) – XLPE / SHIELDED / LSZH

16 AWG (1.5 SQ) Galvanized Steel Wire Armor (GSWA) – XLPE / SHIELDED / LSZH

24 AWG (0.2 SQ) Galvanized Steel Wire Braid Armor (GSWB) – XLPE / SHIELDED / LSZH

22 AWG (0.34 SQ) Galvanized Steel Wire Braid Armor (GSWB) –XLPE / SHIELDED / LSZH

20 AWG (0.5 SQ) Galvanized Steel Wire Braid Armor (GSWB) – XLPE / SHIELDED / LSZH

18 AWG (0.75 SQ) Galvanized Steel Wire Braid Armor (GSWB)– XLPE / SHIELDED / LSZH

16 AWG (1.5 SQ) Galvanized Steel Wire Braid Armor (GSWB) – XLPE / SHIELDED / LSZH

​

BELDEN 벨덴케이블 한국총판 AlphaWire 알파와이어 케이블콘㈜ ☎.02-744-0909(공구공구)

충청,전라,경상 담당 010-3732-칠칠일공 서울 담당 010-6377-칠칠일공 경기,인천 담당 010-9223-칠칠일공

벨덴 재고 및 견적 문의 문자전용 010-9228-7710

​벨덴기술문의010-6612-칠칠일공  BELDEN 팀장010-3141-칠칠일공

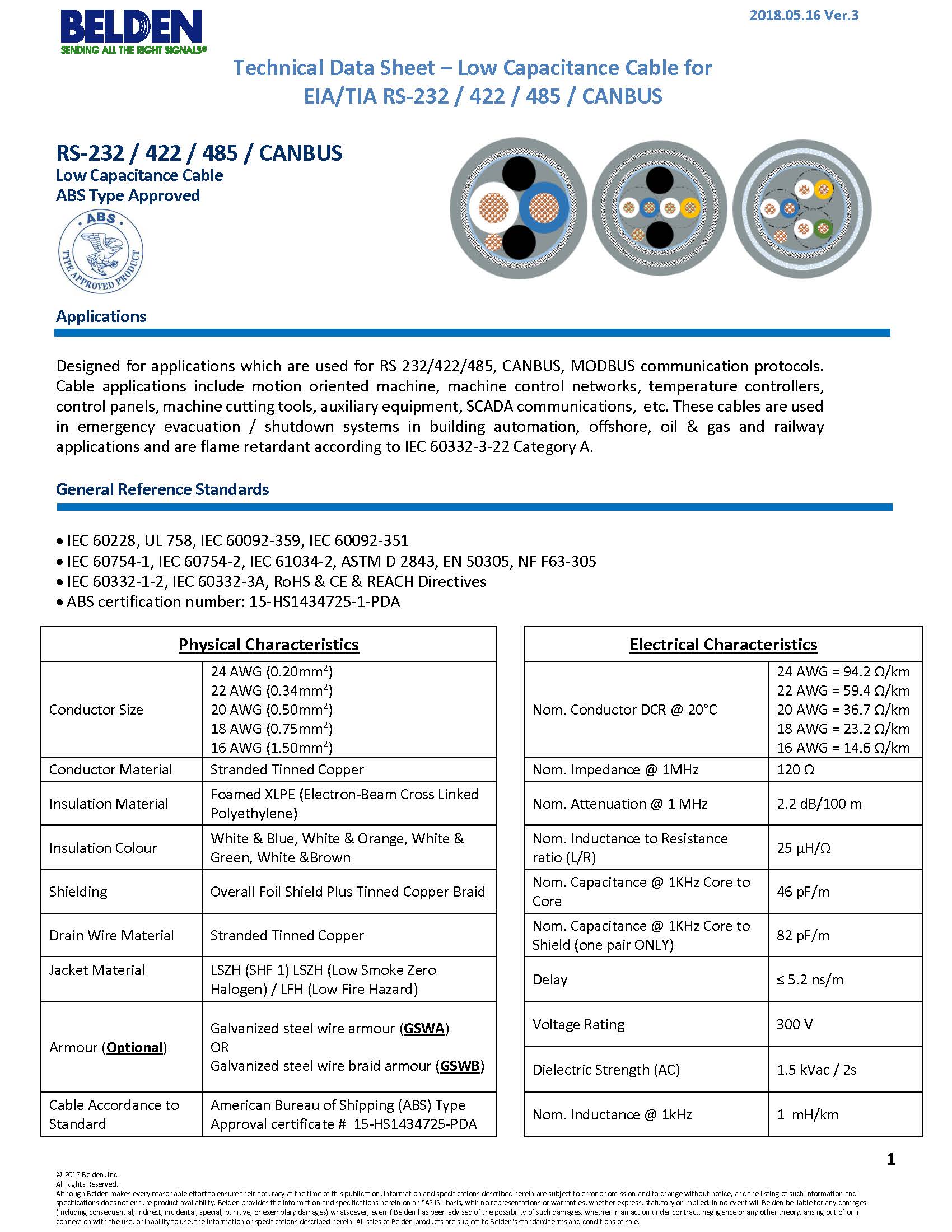

General Reference Standards

• IEC 60228, UL 758, IEC 60092-359, IEC 60092-351

• IEC 60754-1, IEC 60754-2, IEC 61034-2, ASTM D 2843, EN 50305, NF F63-305

• IEC 60332-1-2, IEC 60332-3A, RoHS & CE & REACH Directives

• ABS certification number: 15-HS1434725-1-PDA

Physical Characteristics

Conductor Material:  Stranded Tinned Copper

Insulation Material: Foamed XLPE

Shielding: Overall Foil Shield Plus Tinned Copper Braid

Drain Wire Material: Stranded Tinned Copper

Jacket Material: LSZH(SHF 1)

Armour (Optional):

GSWA (Galvanized steel wire armour) or GSWB (Galvanized steel wire braid armour)

Mechanical Characteristics

Operating Temperature Range: -40℃ to +90℃

Flammability: IEC 60332-3A (Vertical Flame), IEC 60332-1-2

UV / Sun Light Resistance: UL 1581

Oil Resistance: ICEA S 73-532 IRM 902

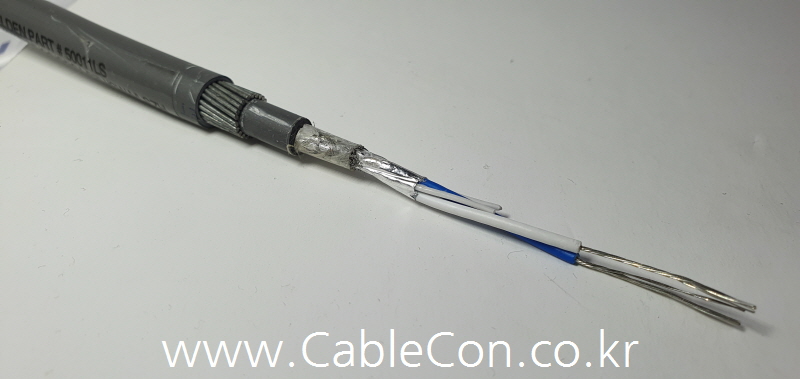

www.cablecon.co.kr  벨덴RS485 사진 www.cable.kr  Belden 카다로그
