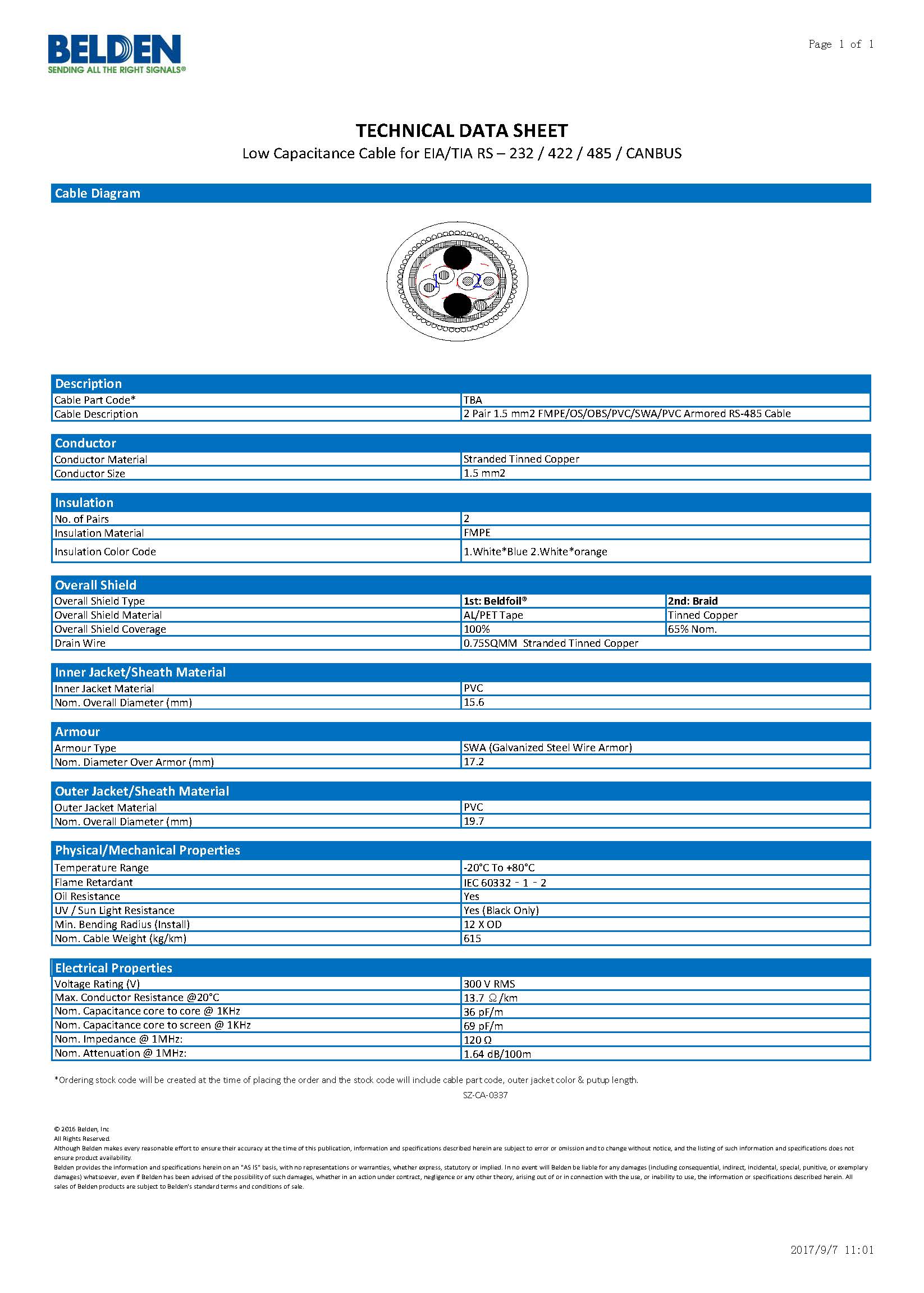

BELDEN _ RS-485,  2Pr x 1.5SQ(㎟), SWA Armored Type

Applications: RS-485, RS-422, RS-232, CANBUS, MODBUS Cable

Cable Description: FMPE/OS/OBS/PVC/SWA/PVC

Physical Characteristics

Conductor Size: 1.5SQ(㎟)

No. of Pairs: 2

Conductor Material: Stranded Tinned Copper

Insulation Material: FMPE

Insulation Color Code: 1)White*Blue, 2)White*Orange

Shield 1: Overall Foil Shield(Coverage: 100%)

Shield 2: Tinned Copper Braid (Coverage: 65%)

Drain Wire Material: Stranded Tinned Copper (0.75SQ)

Inner Jacket Material: PVC

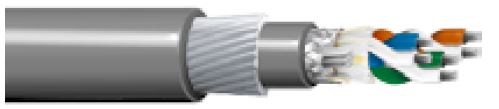

Armour Type: SWA (Steel Wire Armor)

Outer Jacket Material: PVC

Mechanical Characteristics

Temperature Range: -20℃ to +80℃

Flame retardant: IEC 60332-1-2

Oil Resistance: Yes

UV / Sun Light Resistance: Yes (Black Only)
